Products

Purpose Built Aerospace Controllers

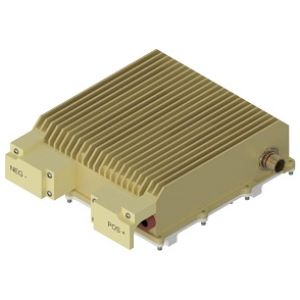

High Current Brushless DC Aerospace Motor

Customer Type: Aircraft OEM
Aircraft Type: Military UAV
Certified Location:  Fuselage
Function: Controls and Monitors BLDC Hydraulic System
Features: 190A max intermittent, 28V Analog Control, 60V BLDC Motor Drive

Windshield Temperature

Customer Type: Aircraft OEM
Aircraft Type: Business Jet or Turboprop
Certified Location:  Pressure Vessel
Function: Windshield Heater Temperature Regulation
Features: 100% Solid State

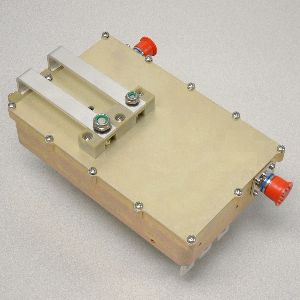

High Current Brushless DC Aerospace Motor

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location:  Pressure Vessel
Function: Controls and Monitors Vapor Cycle System
Features: 112A Continuous, Software Qualified to DO-178B, Level E

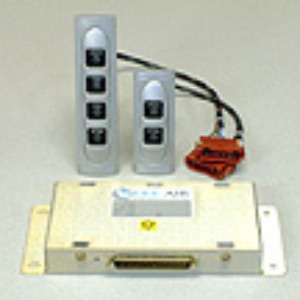

Pilot/Copilot Power Seat Adjustment

Customer Type: Aircraft OEM
Aircraft Type: Business Jet or Turboprop
Certified Location:  Pressure Vessel
Function: Rotary Seat Actuator Control
Features: Solid State Discrete Logic Interpretation of Travel Limits

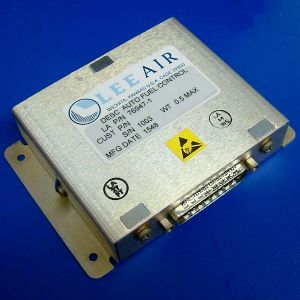

Auto Fuel

Customer Type: Aircraft OEM
Aircraft Type: Business Jet or Turboprop
Certified Location:  Pressure Vessel Instrument Panel
Function: Actuator Control & Feedback, Maintains fuel tank balance
Features: 100% Solid State

Aerospace Thrust Reverser

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Pressure Vessel
Function: Controls and provides status of Thrust Reverser System
Features: 100% Solid State except for BRT/DIM Relay

Aerospace Pitch Trim

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Pressure Vessel
Function: Controls pitch trim actuator & monitors system for pitch trim run away.
Features: 100% Solid State. Fault output for any illegal system states.

Aerospace Temperature

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Empennage (Tailcone)
Function: Controls anti-ice parting strip heaters in a horizontal stabilizer de-ice system.
Features: 100% Solid State. Over temperature and fault outputs.

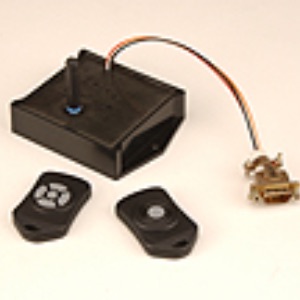

Wireless

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Outside of Pressure Vessel.
Function: Allows remote activation of entry light using keyfob transmitter.
Features: 100% Solid State. Epoxy encapsulated for operation in extreme environments.

Aerospace Roll Trim

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Pressure Vessel (Cockpit)
Function: Used to control roll trim actuator and supply summed roll trim position information to roll trim position indicator.
Features: 100% Solid State

Aircraft Auxiliary Lighting

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Pressure Vessel (Cabin)
Function: System consist of controller and switch panels to control lights located in stair, cockpit, cabin, and baggage compartment.
Features: Designed to be connected directly to the battery and draws very low current.

Aircraft Landing Gear

Customer Type: Systems Integrator
Aircraft Type: Military Rotary Wing Aircraft
Certified Location: Pressure Vessel (Cockpit)
Function: Controls and provides status of landing gear system.
Features: 100% Solid State. Extensive use of SMT components. Includes dimming power supply.

Aircraft Emergency Lighting

Customer Type: Aircraft OEM
Aircraft Type: Business Jet
Certified Location: Pressure Vessel (Cabin)
Function: Provides power from an Emergency Battery to Emergency Lights. Manages charging of Emergency Battery when system is in standby mode.
Features: 28 individually fused outputs provided. Extensive use of Surface Mount components.
